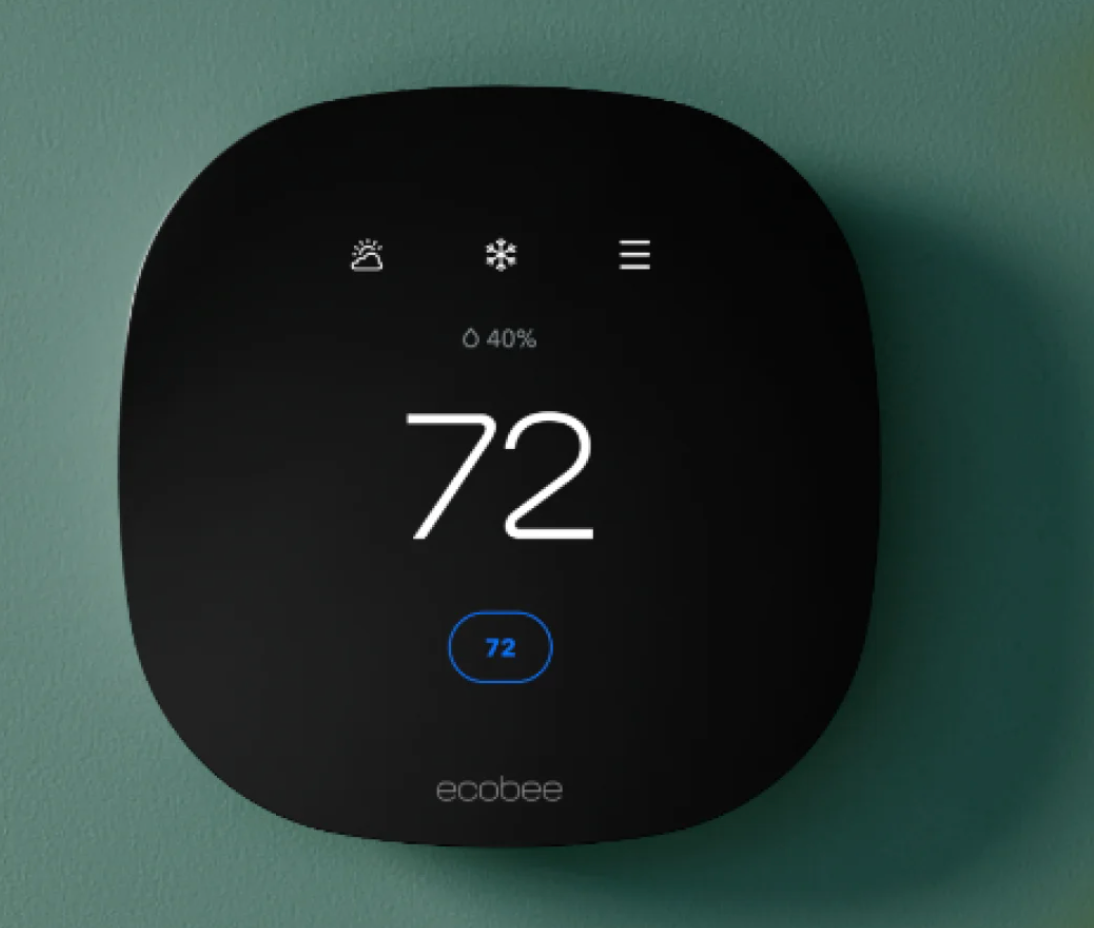

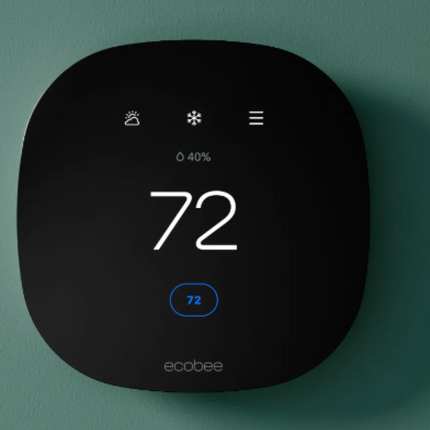

FSTPRT ECOBEE3 SMRT WIFI LITE PRO T-STAT EB-STATE3LTP-02
Dimensions
Thermostat
Length: 102.88 mm (4 in.)
Width: 102.88 mm (4 in.)
Depth: 21.4 mm (0.8 in.)
Trim plate
Height: 170 mm (6.7 in.)
Width: 170 mm (6.7 in.)
Depth: 6.25 mm (0.2 in.)
Color
Black front with white sides and back
Operating environment
Install only in a dry indoor location
Powering Methods
Wired 24VAC through terminals C and Rc.
The Power Extender Kit allows you to reliably power your thermostat without running a fifth wire.
Wire Terminals
Rc
G
Y1
Y2
O/B
Rh
C
W1 (AUX1)
W2 (AUX2)
PEK
Thermostat sensors
Temperature
Humidity
Proximity
Connectivity
Wi-Fi, 802.11 b/g/n @ 2.4 GHz
Supports WEP 64, WEP 128, WPA, and WPA2 encryption methods
DHCP (dynamic) or static IP addressing
168-bit SSL encryption
Mounting
Screws
Bandwidth
15-20 MB/month
Power consumption
Less than 3.5 VA
Sustainability
Recycled packaging
Mercury-free
Arsenic-free
PVC-free
ROHS compliant
Storage
-31 ° to 113 °F (-35 ° to 45 °C)
5% to 95% RH (non-condensing)
Warranty
3-year warranty
