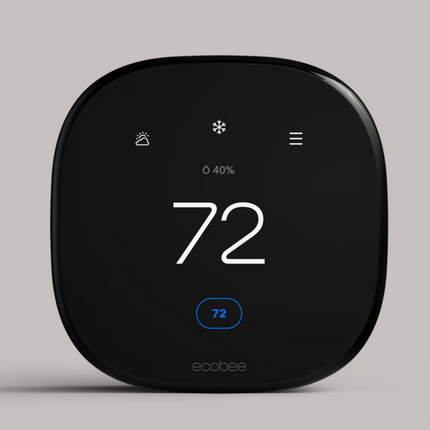

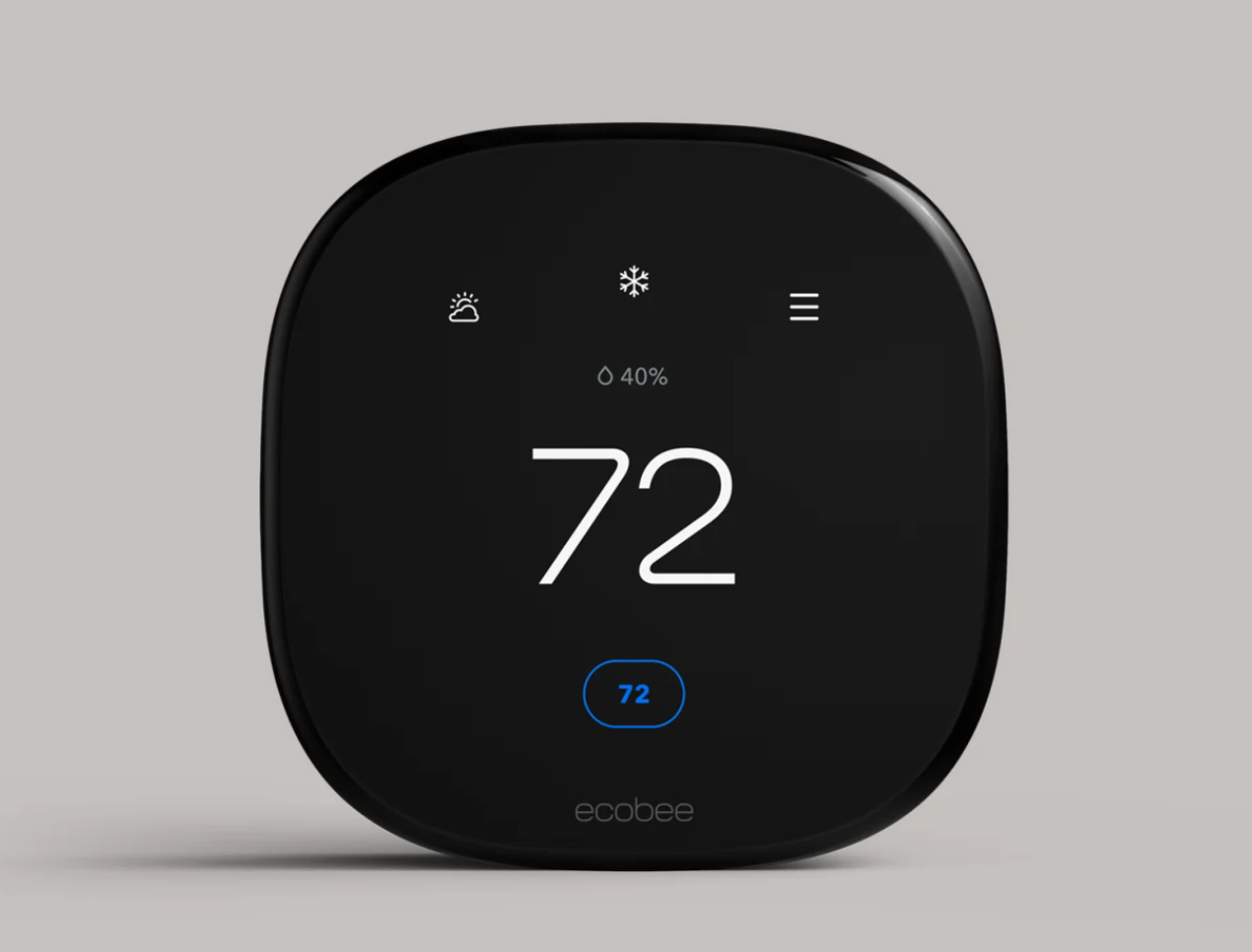

FSTPRT ECOBEE SMRT WIFI T-STAT ENHANCED BUILDER EB-STATE6LPB-01
Display
4 in. full-color LCD touchscreen
540 x 540 pixel display
Dimensions
Thermostat
Height: 103.89 mm (4.09 in.)
Width: 103.89 mm (4.09 in.)
Depth: 23.88 mm (0.94 in.)
Trim plate
Height: 143.5 mm (5.65 in.)
Width: 159.9 mm (6.29 in.)
Depth: 7.71 mm (0.3 in.)
Power Extender Kit*
Length: 62 mm (2.4 in.)
Width: 62 mm (2.4 in.)
Depth: 23 mm (0.9 in.)
*Optional for installation
Colors
Black front, white backing
Thermostat sensors
Temperature
Humidity
Occupancy (Radar)
Proximity (Radar)
Compatibility
Works with most 24VAC HVAC equipment, including conventional furnaces and air conditioners (2H/2C), heat pumps (2H/2C + 1 stage AUX heat), boilers, and PTACs or fan coil units with up to 3 fan speeds. Supports 1-wire accessories such as humidifiers, dehumidifiers, and ventilators (HRV/ERV).
HVAC accessory support
Controls a one-wire HVAC accessory device like a humidifier, dehumidifier, or ventilator. Note: Self-powered accessories require an additional 24V isolation relay.
Wire Terminals
R
G
Y1
Y2
W2/OB
PEK+
C
W1
Connectivity & security
Dual-band Wi-Fi: 802.11 b/g/n @ 2.4GHz, 802.11 a/n/ac @ 5GHz
Bluetooth 5.0
WPA, WPA2, WPA3 encryption methods
DHCP (dynamic) or static IP addressing
168-bit SSL encryption
915MHz radio
Works with
Apple HomeKit, Amazon Alexa, Samsung SmartThings, IFTTT, and more.
Bandwidth
15-20 MB/month (dependent on Alexa Voice Service usage)
Power consumption
Up to 3.5 VA
Powering methods
Wired 24VAC through terminals C and Rc.
The Power Extender Kit enables reliable thermostat power without the need for a fifth wire.
Sustainability
Recycled packaging
Mercury-free
Arsenic-free
PVC-free
ROHS compliant
Temperature range
Desired Temperature: 45 ° to 92 °F (7 ° to 33 °C)
Display: 40 ° to 100 °F (5 ° to 37 °C)
Sensitivity: +/- 1 °F (+/- 0.5 °C)
Operating: 14 ° to 122 °F (-10 ° to 50 °C)
Humidity range
Display: 20% to 90%
Sensitivity: +/- 5%
Operating: 5% to 95% RH (non-condensing)
Storage
-31 ° to 113 °F (-35 ° to 45 °C)
5% to 95% RH (non-condensing)
Warranty
3-year limited warranty
